Stone CNC Machine

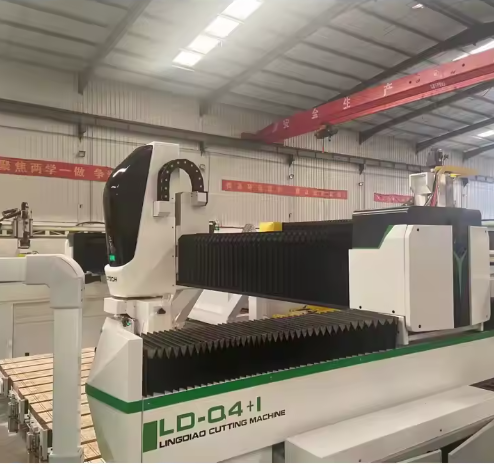

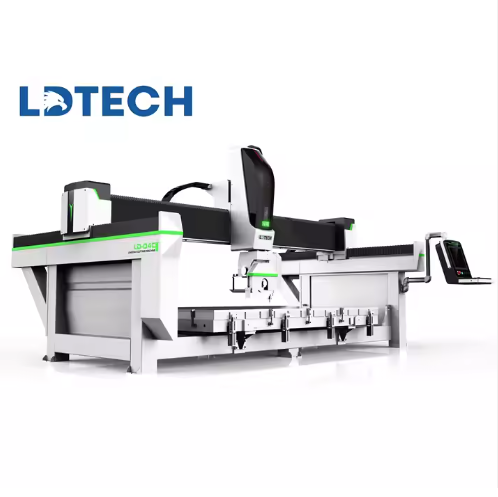

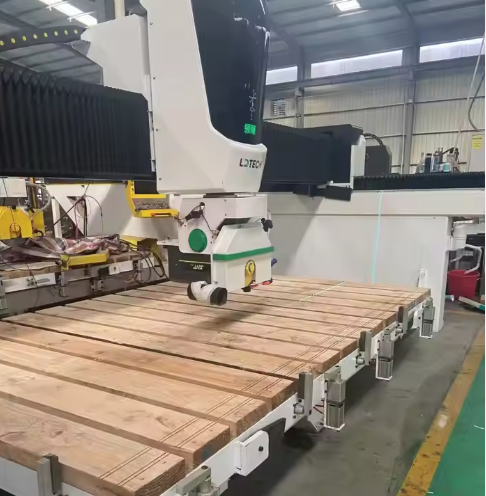

LD-Q4+1 Bridge Saw CNC machine. is the new generation multi-function processing machine which is associated to be designed and manufactured between LDTech and research institute of famous college. With pattern operation and advanced control system and synchronous CNC control system, the machine can be easily operated easily without knowing complicated CNC knowledge.
It is popularly used for cutting slabs and blocks of both natural and synthetic stone, and ceramic.
|
Technical Parameters
|
|
|
Machine Model
|
LD-Q4+1
|
|
Working Size
|
3200*2000*400MM
|
|
Power of Main Motor
|
15KW/(Optional: 18.5KW)
|
|
Dia of Saw Size
|
ø350-ø400( Customizable)
|
|
Extra Spindle Power
|
6 KW (Optional:7.5KW)
|
|
Max. cutting thickness
|
90mm
|
|
Tool Holder Type
|
Er32 (Optional BT40)
|
|
Commend
|
G Code
|
|
Max. Speed of X/Y axis
|
60000mm/min
|
|
Max. Speed of Z axis
|
8000mm/min
|
|
Spindle Rotating Speed
|
0-18000 RPM
|
|
Dimensions (LxWxH)
|
5300*3300*2450MM
|
|
Gross weight
|
4200KGS
|
|
Working Voltage
|
AC380V/50HZ( Customizable)
|
